Double Arms Solar Led Street Light Pole
Technical Data
| Product Name | Double Arms Solar Led Street Light Pole | ||||||
| Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||||||
| Height | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
| Dimensions(d/D) | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
| Thickness | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
| Flange | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
| Tolerance of dimension | ±2/% | ||||||
| Minimum yield strength | 285Mpa | ||||||
| Max ultimate tensile strength | 415Mpa | ||||||
| Anti-corrosion performance | Class II | ||||||
| Against earthquake grade | 10 | ||||||
| Color | Customized | ||||||
| Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | ||||||
| Shape Type | Conical pole, Octagonal pole,Square pole, Diameter pole | ||||||
| Arm Type | Customized: single arm,double arms,triple arms,four arms | ||||||
| Stiffener | With big size to strength the pole to resist the wind | ||||||
| Powder coating | Thickness of powder coating>100um.Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance.Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square). | ||||||
| Wind Resistance | According to local weather condition, General design strength of wind resistance is ≥150KM/H | ||||||
| Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||||
| Hot-Dip Galvanized | Thickness of hot-galvanized>80um.Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. | ||||||
| Anchor bolts | Optional | ||||||
| Material | Aluminium,SS304 is available | ||||||
| Passivation | Available | ||||||
Product Description
Introducing our two-arm solar LED street light pole, the perfect solution for providing efficient and reliable lighting in a variety of outdoor environments. Our steel light poles are crafted from high-quality materials such as carbon steel, alloy steel or stainless steel to ensure durability and longevity in any weather condition.
Double-arm solar LED street light poles offer numerous advantages and are ideal for your outdoor lighting needs. The pole features double arms for enhanced stability and supports attached LED lights ensuring maximum lighting coverage and visibility. The dual-arm design also allows for more flexibility in positioning the lights, making it easier to customize lighting layouts to meet specific requirements.
Our street light poles are equipped with solar-powered LED lights, providing an environmentally friendly and cost-effective lighting solution. Integrated solar panels use solar energy to efficiently charge batteries, providing sustainable and renewable energy for lighting outdoor spaces. This not only reduces energy costs but also minimizes environmental impact, making it a green choice for outdoor lighting installations.
Additionally, our double-arm solar LED street light poles are designed to be easy to install and maintain, saving time and energy during installation and ongoing operation. The sturdy construction and corrosion-resistant properties of steel poles ensure reliable performance and minimal maintenance requirements, making them a practical and long-lasting lighting solution for a variety of outdoor applications.
Whether lighting streets, parking lots, sidewalks or other outdoor areas, our two-arm solar LED street light poles provide superior lighting performance and durability. With its advanced design, energy-saving technology and rugged construction, this lighting solution is ideal for enhancing safety, visibility and aesthetics in outdoor environments. Choose our double arm solar LED street light poles for a reliable, sustainable and high quality outdoor lighting solution.
Production Details

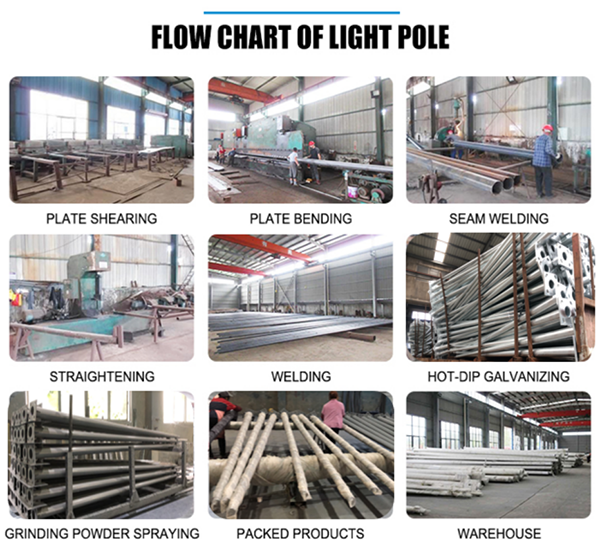

Product Process
About Us
Yangzhou Radiance Photovoltaic Technology Co., Ltd. belongs to Tianxiang Electric Group, which is specialized in street lights products since 1996.
We are a manufacturer with over 40,000+ m2 factory area and exporter of solar street lighting products, and a global supplier for more than 50 countries, such as African countries, Asian countries, American countries and etc.
Helios Solar is our brand for all in one solar street lights. And we hope that we can get the support from all of solar customers to build a bright future.
Our all in one solar street lights are covering 10w, 20w,30w,35w,40w,50w,60w, 70w,80w,90w,100w all in one integrated solar street lights.
As a professional LED lighting manufacturer, our company, strictly sticking to" Customer first" business philosophy as well as taking environmental protection as our own commission,has launched many series of energy-saving, environment-friendly led lighting fixtures in the past few years.
At the same time, we will be always like to continuously improve, innovate ourselves to meet up worldwide customers.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
FAQ
1. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yangzhou City, Jiangsu Province, China, about 2 hours drive from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
2. What are the main types of steel lamp posts?
A: Our company mainly has ordinary street lamp posts, decorative street lamp posts, high pole lamp posts, traffic signal lamp posts, and intelligent lamp posts.
3. In what settings can the high durability and proven reliability of the lights be utilized?
A: The lights are suitable for a wide range of settings, including streets, squares, stadiums, highways, and more, offering durability and reliability in diverse environments.
4. Q: Can I try a sample?
A: Yes. Samples for testing quality is available.
5. What expertise ensures the top-notch craftsmanship of the lights?
A: Skilled welders with over 20 years of experience are responsible for ensuring the top-notch craftsmanship of the lights, guaranteeing a high level of quality and precision in their construction.
