Hot DIP Galvanized Steel Metal High Mast Lamp Lighting Pole 15m-40m

Short Description:

Certification: ISO, RoHS, CE
Application: Highway
Material: Steel
Type: Polygonal
Thickness: 5mm~12mm
Color: Customized


Product Detail

Product Date

Material Commonly:
Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
Height 15M 20M 25M 30M 40M
Dimensions (d/D) 120mm/ 280mm 220mm/ 460mm 240mm/ 520mm 300mm/ 600mm 300mm/ 700mm
Thickness 5mm+6mm 6mm+8mm 6mm+8mm+10mm 8mm+8mm+10mm 6mm+8mm+10mm+12mm
LED Power 400W 600W 700W 800W 1000W
Color Customized
Surface treatment Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II
Shape Type Conical pole, Octagonal pole
Stiffener With big size to strength the pole to resist the wind
Powder coating Thickness of powder coating>100um.
Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance.
Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square).
Wind Resistance According to local weather condition, General design strength of wind resistance is ≥150KM/H
Welding Standard No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Hot-Dip Galvanized Thickness of hot-galvanized>80um.
Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test.
Lifting device Ladder climbing or electric
Anchor bolts Optional
Material Aluminium,SS304 is available
Passivation Available

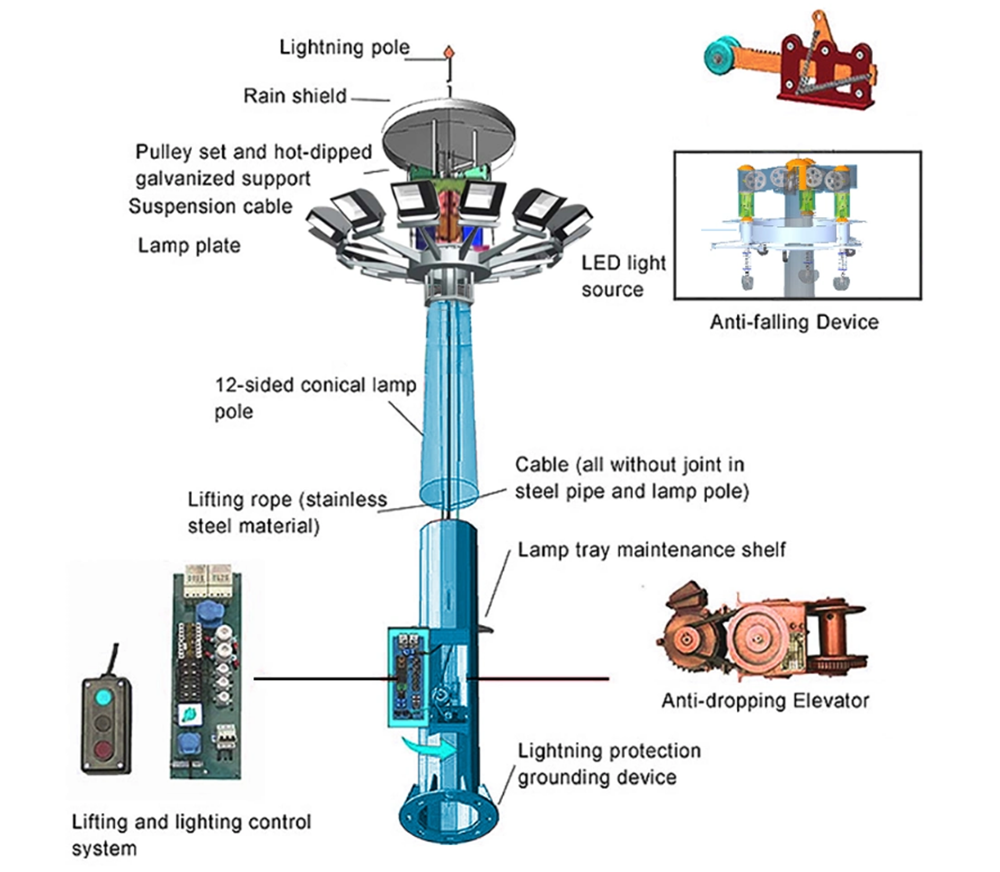

Product 3D Details

3D Details

Production Equipment

1655190122190

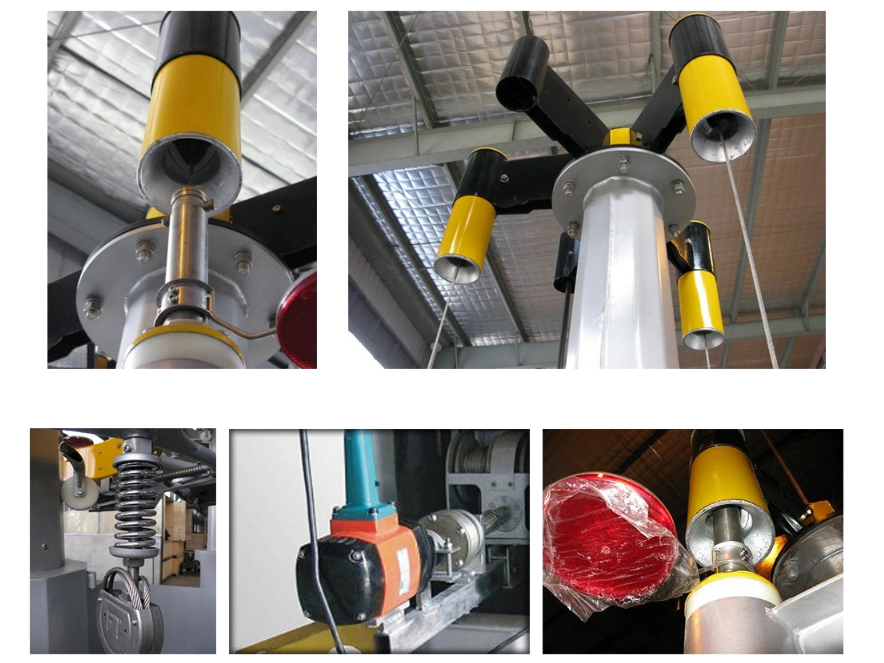

Winch Details For High Mast Pole

1. Winch has the function to prevent fixture down wash automatic when the power off suddenly during raising or lowering.

2. Raising or lowering can driven by motor or hand.

3. Three-point guiding system can keep the fixture and lighting safety and intact.

4. The hook made by stainless steel with a long working life.

5. Operator can know the hook position clearly for the red disc in different angle.

6. All the wire avoid exposed and loosen in working  position.

7. Winch has torque protection.

1666944526725

FAQ

1. Q: Are you a factory or trading company?

A: We are factory established for 12 years, specialized in outdoor lights.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Yangzhou City, Jiangsu Province, China, about 2 hours drive from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: What's your main product?

A: Our main product is Solar Street Light, LED Street Light, Garden Light, LED Flood Light, Light Pole And All Outdoor Lighting

4. Q: Can I try a sample?

A: Yes. Samples for testing quality is available.

5. Q: How long is your lead time?

A: 5-7 working days for samples; around 15 working days for bulk order.

6. Q: What's your shipping way?

A: By air or sea ship are available.

7. Q: How long is your warranty?

A: 5 years for outdoor lights.
