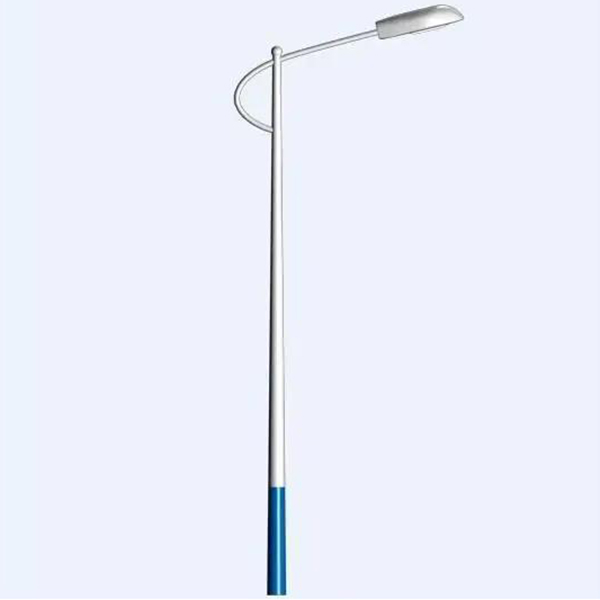

The height of the main lamp of the new rural construction street lamp is about 6 meters, the material is Q235 high-quality steel plate rolled and welded, the bottom diameter is 140 mm, the upper diameter is 60 mm, and the wall thickness of the solar street lamp pole is greater than or equal to 3.0 mm. The whole lamp pole is electrostatically sprayed with plastic after hot-dip galvanizing and anti-corrosion treatment. The color is customized according to customer requirements. The surface of the sprayed plastic layer is required to be dense, smooth, durable, without discoloration, peeling and other phenomena; The thickness of zinc coating of lamp pole shall be more than 85 microns, and the thickness of anti-corrosion plastic coating on the surface shall be more than 100 microns.
The outlet arm of the street lamp is made of high-quality carbon steel in accordance with the national standard. The internal diameter of the standard round pipe is 32mm, and the wall thickness is 2mm; The wall thickness of the crosspiece steel is 3mm. The surface treatment of the support rod and crosspiece is the same as that of the main rod by hot galvanizing after pickling and surface spraying.
The lower flange plate of the street lamp pole shall also be made of high-quality carbon steel plate with a thickness of 10 mm. The periphery of the flange shall be smooth and free of burrs. The installation holes shall be arranged reasonably and positioned accurately to facilitate installation.
The wiring electrical door of the lamp pole shall also be made of the same material as the street lamp pole. The appearance shall be regular, the surface shall be smooth, and the size shall be consistent. The anti-theft device and grounding device shall be designed and installed. The copper core wires and terminal blocks of our street lamps adopt national standard products, which meet the requirements of the installation environment.
